本次是使用mapper4一键生成

步骤

先写数据库文件

sql

CREATE DATABASE `db2024`
USE `db2024`
DROP TABLE IF EXISTS `t_pay`;
CREATE TABLE `t_pay` (
  `id` INT(10) UNSIGNED NOT NULL AUTO_INCREMENT,
  `pay_no` VARCHAR(50) NOT NULL COMMENT '支付流水号',
  `order_no` VARCHAR(50) NOT NULL COMMENT '订单流水号',
  `user_id` INT(10) DEFAULT '1' COMMENT '用户账号ID',
  `amount` DECIMAL(8,2) NOT NULL DEFAULT '9.9' COMMENT '交易金额',
  `deleted` TINYINT(4) UNSIGNED NOT NULL DEFAULT '0' COMMENT '删除标志，默认0不删除，1删除',
  `create_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`id`)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 COMMENT='支付交易表';
INSERT INTO t_pay(pay_no,order_no) VALUES('pay17203699','6544bafb424a');

新建一个项目

添加依赖

cmd

<dependencies>
        <!--Mybatis 通用mapper tk单独使用，自己独有+自带版本号-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.13</version>
        </dependency>
        <!-- Mybatis Generator 自己独有+自带版本号-->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.4.2</version>
        </dependency>
        <!--通用Mapper-->
        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
        </dependency>
        <!--persistence-->
        <dependency>
            <groupId>javax.persistence</groupId>
            <artifactId>persistence-api</artifactId>
        </dependency>
        <!--mysql5.1.47-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>${basedir}/src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>${basedir}/src/main/resources</directory>
            </resource>
        </resources>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.4.2</version>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>5.1.47</version>
                    </dependency>
                    <dependency>
                        <groupId>tk.mybatis</groupId>
                        <artifactId>mapper</artifactId>
                        <version>4.2.3</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>

在resources新建config.properties和generatorConfig.xml

config.properties

mysql5

properties

#User表包名
package.name=com.lazy.cloud
# mysql5.7
jdbc.driverClass = com.mysql.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.user = root
jdbc.password =123456

mysql8

properties

#t_pay表包名
package.name=com.lazy.cloud
# mysql8.0
jdbc.driverClass = com.mysql.cj.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
jdbc.user = root
jdbc.password =123456

要写项目已有的包名，就是在那个包下生成的包名

generatorConfig.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <!-- 去config.properties 里面读取配置 -->
    <properties resource="config.properties"/>

    <context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="tk.mybatis.mapper.common.Mapper"/>
            <property name="caseSensitive" value="true"/>
        </plugin>

        <jdbcConnection driverClass="${jdbc.driverClass}"
                        connectionURL="${jdbc.url}"
                        userId="${jdbc.user}"
                        password="${jdbc.password}">
        </jdbcConnection>
        <!-- 生成的实体类包名 -->
        <javaModelGenerator targetPackage="${package.name}.pojo" targetProject="src/main/java"/>
        <!-- 生成的mapper的包名 -->
        <sqlMapGenerator targetPackage="${package.name}.mapper" targetProject="src/main/java"/>
        <!-- 生成的mapper.xml的包名 -->
        <javaClientGenerator targetPackage="${package.name}.mapper" targetProject="src/main/java" type="XMLMAPPER"/>
        <!-- 表名 -->
        <table tableName="t_pay" domainObjectName="Pay">
            <generatedKey column="id" sqlStatement="JDBC"/>
        </table>
    </context>
</generatorConfiguration>

刷新maven

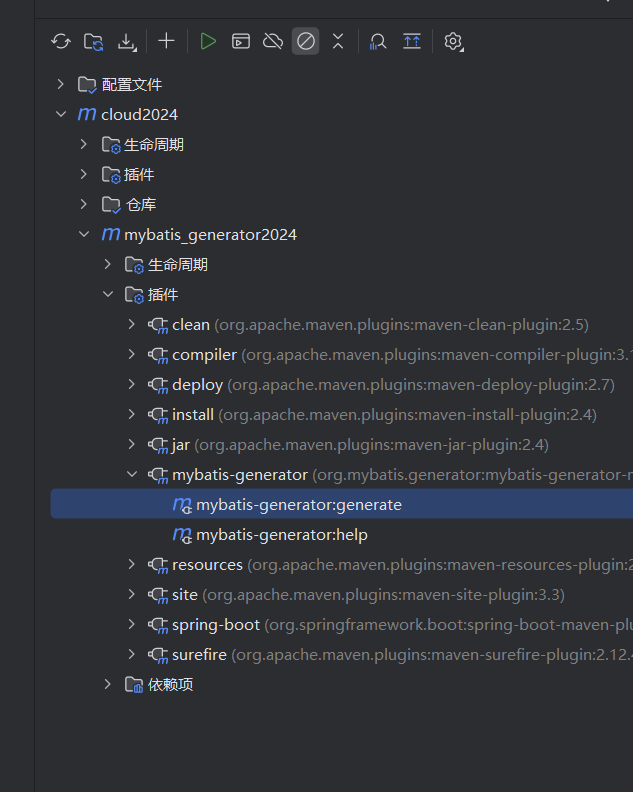

双击generator
静静等待生成即可

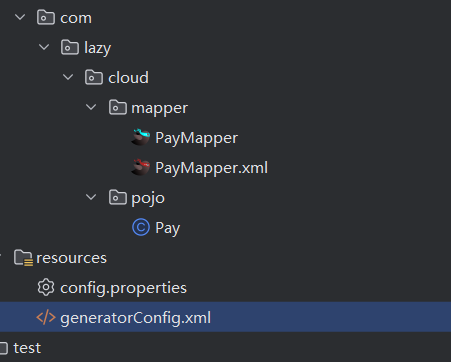

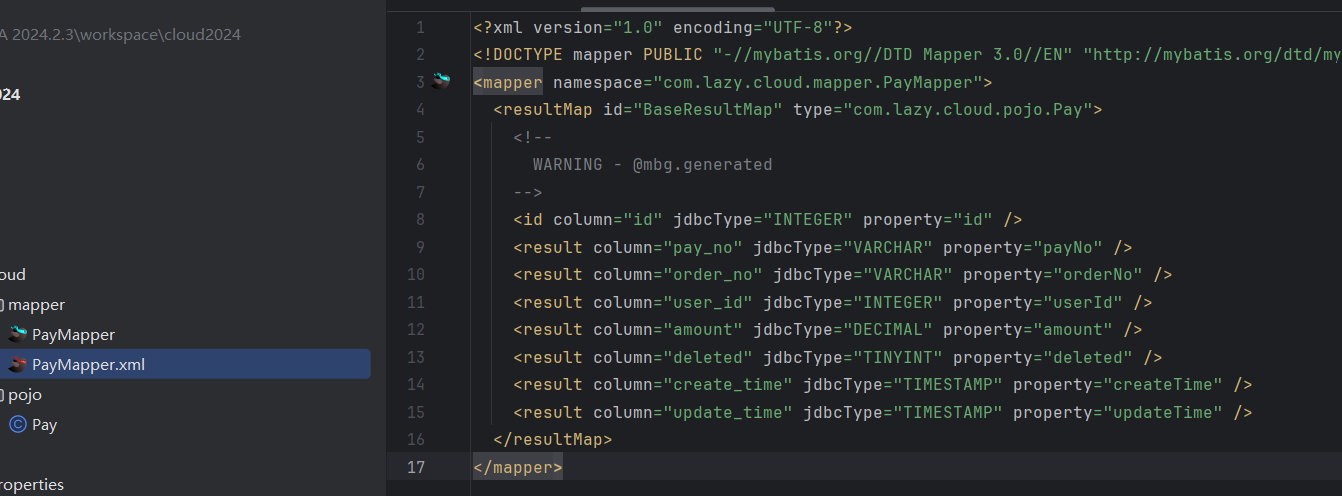

效果

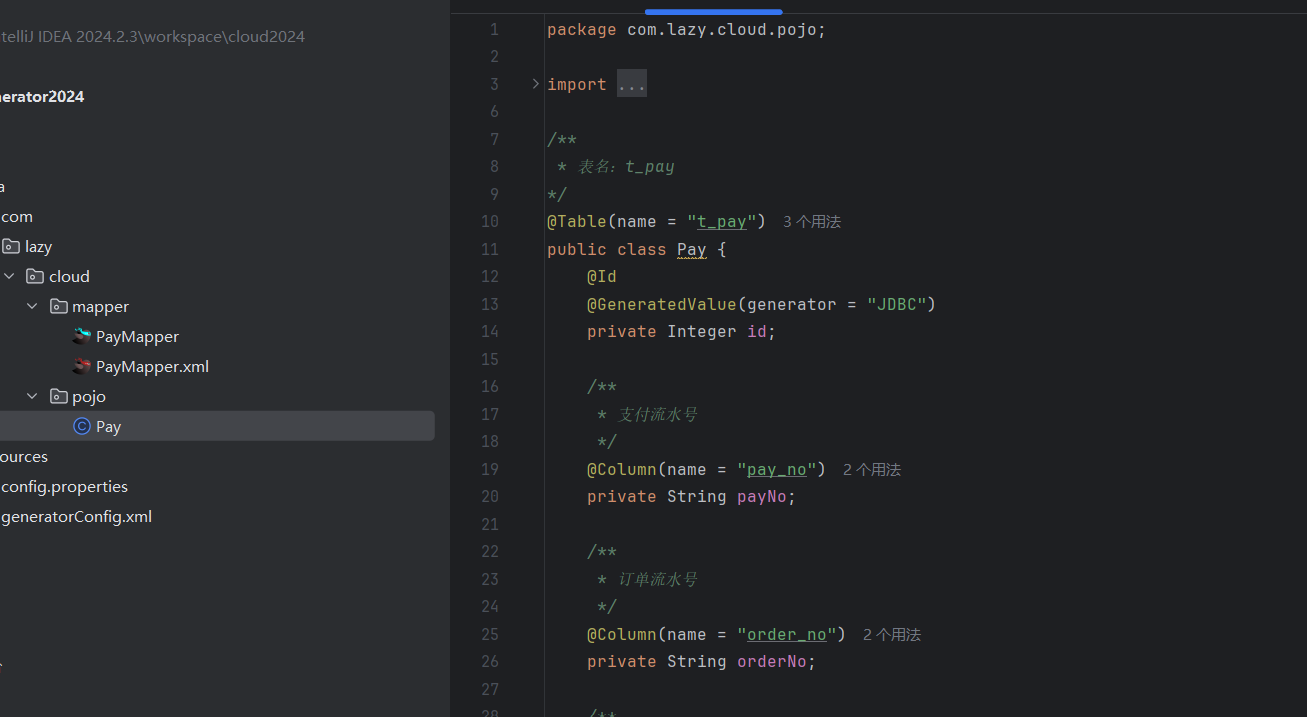

刚才创建表的注释也加载到实体类里面了！
